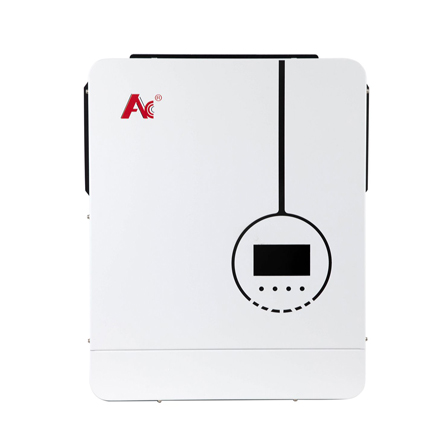

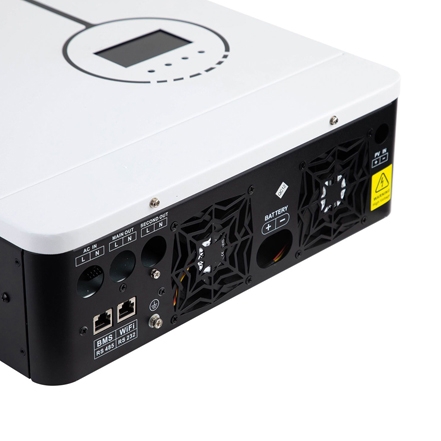

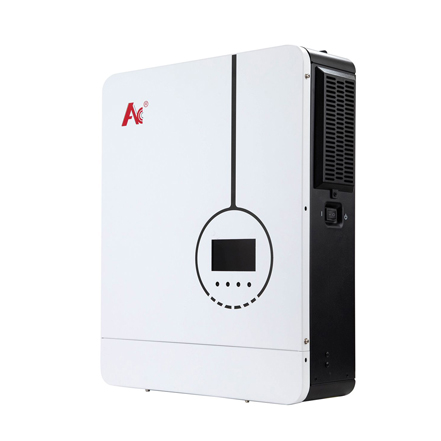

This solar inverter is designed to optimize energy usage, ensuring that you get the most out of your solar panels. Built for efficiency and durability, it converts DC power from solar panels into usable AC power, supporting your energy needs even in off-grid scenarios.
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Conigurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting

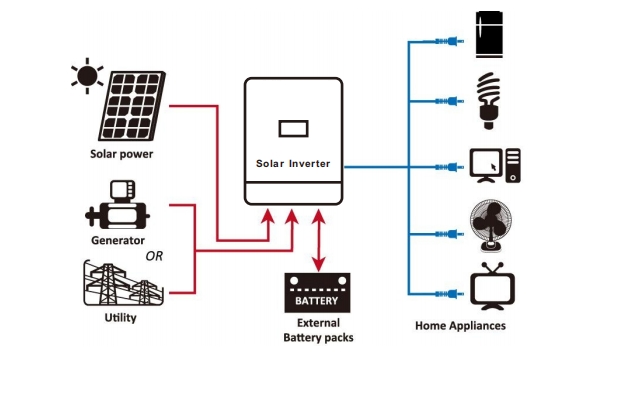

Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/Over temperature/short circut protection
Smart battery charger design for optimized batteryperformance
Cold start function
| Model | 3.6kw/ 4.2kw/ 6.2kw /8.2kw /10.2kw |
| input voltage | 12V/24V/48V |
| output voltage | 220V/230VAC |
| Rated power | 5000w |
| Peak Efficiency | 98% |
| solar charging current | 80A |
| Battery Type | lead-Acid，Lithium-lon |
| Operating temperature | -20° to 50 ° |
| colling Method | intelligent fan cooling |
| FEATURE | DESCRIPTION |
| High Efficiency | Converts up to 98% of solar energy into usable electricity. |
| Smart LCD Display | User-friendly display for monitoring real-time performance. |
| Battery Compatibility | Supports lead-acid and lithium-ion batteries for storage. |
| Advanced MPPT Technology | Maximizes solar panel output even in low-light conditions. |
| Pure Sine Wave Output | Provides clean, stable power for sensitive devices. |
| Overload Protection | Built-in safeguards to protect your appliances from surges. |
| Silent Operation | Noise-free cooling system ensures a quiet environment. |
| Compact Design | Lightweight and easy to install, saving space. |
| PROTECTION | ||||||
| PV input reverse polarity protection | Yes | |||||
| PV insulation resistance detection | Yes | |||||
| Residual current detection | Yes | |||||
| Output over current protection | Yes | |||||
| Output short circuit protection | Yes | |||||
| Output over voltage protection | Yes | |||||
| BASIC DATA | ||||||
| Operation temperature | -25~60 | |||||
| Storage temperature | -30~65 | |||||
| Relative humidity | ≥4000 | |||||
| Working altitude (m) | ||||||
| Coaling | Air cooling | |||||
| Noise (db) | <55 | |||||
| Weight (Kg) | 20 | |||||
| Protection class | IP66 | |||||
